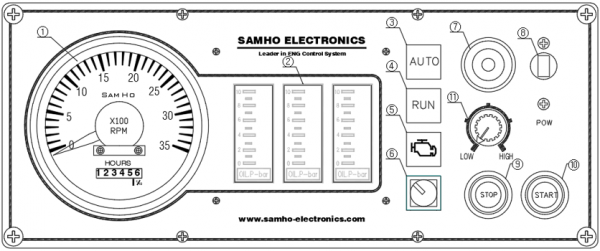

① Tachometer : Engine rpm display



② Water Temp, Oil Pressure, Batt. Volt (Digital display)



③ Auto Stop Switch : Select engine stop mode (AUTO / Manual)



④ IDLE / RUN Switch : Push the button - maintained 1800 RPM



⑤ Check Engine Lamp : Lights up when engine malfunctions (overheating, lack of oil, overspeed)



⑥ Safety Switch : Unable to start in the following conditions

à EC200-G (button pressed), EC200-K (key rotated counterclockwise)

⑦ Buzzer: The device beeps



⑧ Main Power Switch : Circuit protection circuit breaker



⑨ Stop Switch : Used to stop the engine



⑩ Start Switch : Used to start engine.



⑪ Speed Control : RPM fine tuning at 1800 rpm.
