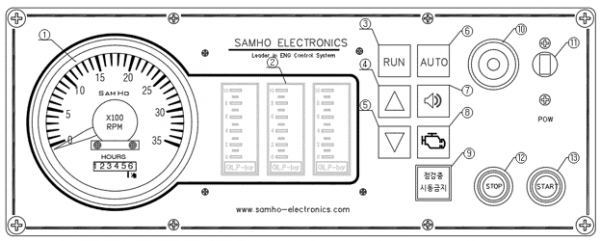

① Tachometer : Engine
rpm display
②
Water
Temp, Oil Pressure, Batt. Volt (Digital
display)
③
IDLE
/
RUN
Switch : Push the button -
maintained 1800 RPM
④
Increment : RPM fine rise
adjustment at 1800 rpm.
⑤
Decrement : RPM fine descent
adjustment at 1800 rpm.
⑥
Auto Stop Switch : Select engine
stop mode (AUTO
/ Manual)
⑦
Beep Release Switch : ON or OFF
⑧
Check Engine Lamp : Lights up when engine malfunctions
(overheating, lack of oil, overspeed)
⑨
Safety Switch : Unable to start in
the following conditions
à EC200-G
(button pressed), EC200-K (key rotated counterclockwise)
à
⑩
Buzzer: The device beeps
⑪ Main
Power Switch :
Circuit protection circuit breaker
⑫
Stop Switch : Used to stop the
engine
⑬
Start Switch :
Used to start engine.

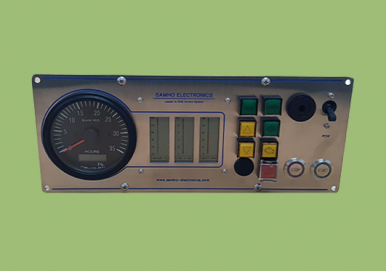

Engine instrument panel and related parts specialist
As a company that produces a variety of products in small quantities, and special specifications small order quantity is also made to order.
